QSFP lr8

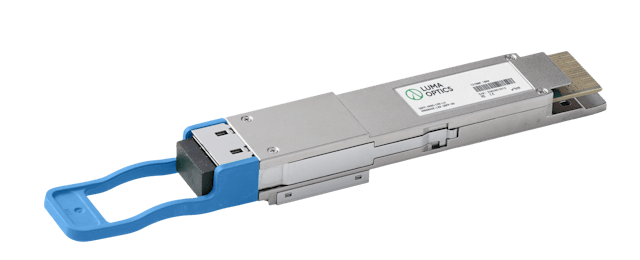

400GBASE-lR8-LU QSFP-DD PAM4
850nm 100m | Optical Transceiver Module
Compliance:
QDD-400G-SR8-S Compatible QSFP-DD 400GBASE-SR8 PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module. This transceiver can be used in full 400G mode, 2 x 200G-SR4, 4 x 100G or 8 x 50G-SR
| data rate | 400Gbps |
| Center wavelenght | 850nm |
| Cable distance | 70m/100m@MMF |
| power consumption | ≤10W |
| connector | MTP/MPO-16 |
| Transmitter Type | VCSEL 850nm |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 8x 50G PAM4 |
| Tx Power | -6-4dBm |
| Rx Power | -7.9 - 4dBm |
| protocol | QSFP-DD MSA, CMIS Rev4.0, OIF 56G PAM4, IEEE 802.3cd |
| media | MMF |
| Extinction Ration | 3dB |
| fec | NO |
| package | COB |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | Data Center 1 x 400G to 400G 2 x 200G-SR4 8 x 50G-SR |
features
- Compliant with IEE 802.3bs standard
- 400GBASE-LR8 optical interface
- 400GAUI-8 electrical interface
- Compliant with QSFP-DD MSA HW Rev 3.0 with duplex LC connector
- Two-wire serial interface with digital diagnostic monitoring
- Class 1 Laser
- Compliant with EU Directive 2011/65/EU (RoHS compliant)
